Detailed Product Description
Summary:

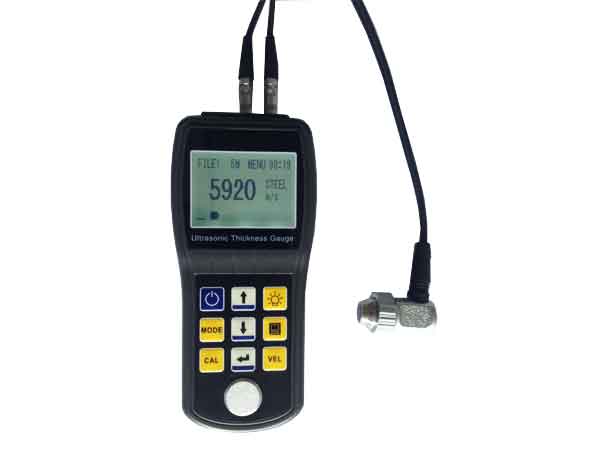

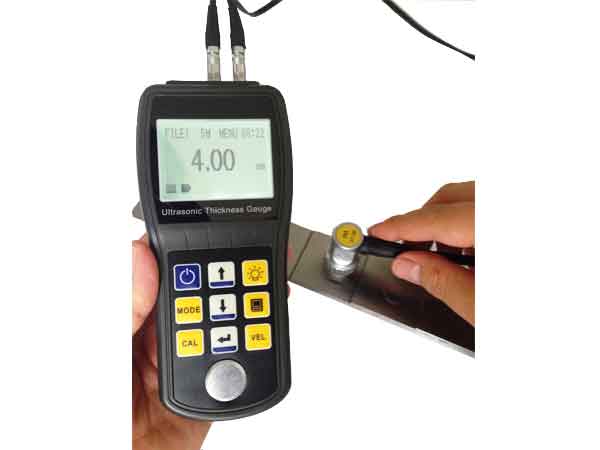

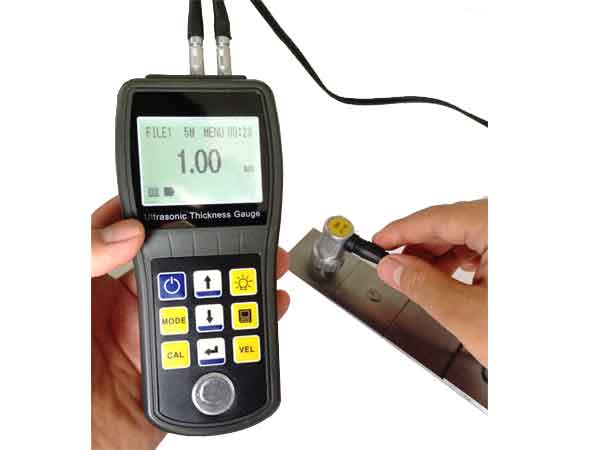

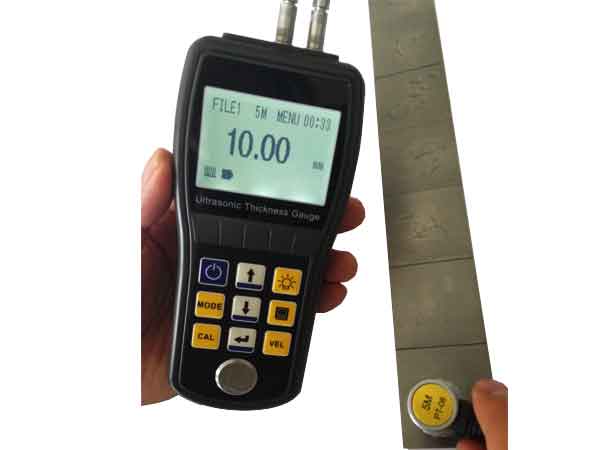

ACCUR-2 thickness gauge is a digital thickness gauge, Based on the same operating principles as SONAR it is capable of measuring the thickness of various materials with accuracy as high as 0.01 millimeters, or 0.001inches. It is suitable for a variety of metallic and non-metallic materials.
Main technical parameters:
- Measuring range: 0.75-300mm(steel)
- Displaying accuracy: 0.01mm
- Measuring error: 1 mm-10 mm :±0.04mm 10mm-200mm :(±0.4%H+0.1)mm
- Measurement period: 4 times per second
- Measurement frequency: 5MHZ, 2MHz,7MHz
- Ultrasonic velocity: 1000-9999m/s
- Display: FSTN digital LCD with cold back light
- Zero adjustment: auto returning to zero when you press the key after the probe is put on the specimen
- Linear correction: auto linear correction by the MCU programs(V Path auto-compensation)
- Alarm function: setting the measurement limit and alarming for the results beyond the limit

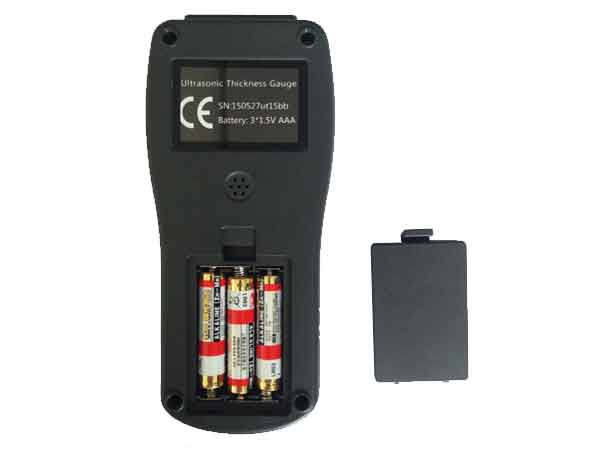

- Working voltage: 1.5V x 3 AAA
- Working Time: about 50 hours(with back light off)
- Data Memory: 500 readings
- Power off: Auto power off if not working for 2 minutes, and the power key is also available
- Display contents: thickness value, coupling state, power state, CAL calibration state, sound velocity
- Shape size: 155mm X 68mmX27mm
- Whole weight: 230g
Main functional parameters:
- Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the measurement precision.
- Able to preset the upper limit and the lower limit for the thickness, alarm when the value is beyond the limit.
- Coupling state indicating in the display.
- With LED backlight of display, easily used in dark environment.
