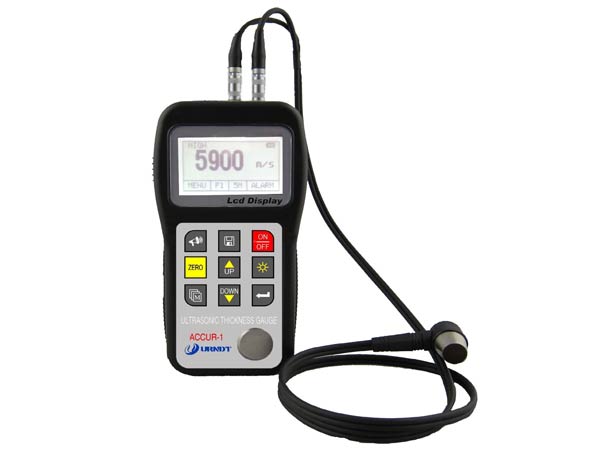

ACCUR-1 Ultrasonic Thickness Gauge

Product Details:

Place of Origin:PR China
Brand Name:URNDT
Model Number:ACCUR-1

Payment & Shipping Terms:

Minimum Order Quantity:1 set
Packaging Details:Standard export carton box
Delivery Time:Goods in stock, could send out within one
Payment Terms:100% T/T, Paypal or Wester Union
Detailed Product Description

ACCUR-1 Ultrasonic Thickness Gauge is a new generation of intelligent ultrasonic thickness gauge, using the latest high performance and low power consumption microprocessor technology, based on the principle of ultrasonic measurement, to measure the thickness of metal, glass, ceramics and other materials, and the materials of sound velocity measurement.

Technology Parameter:

Measuring range:          0.75mm~300.0mm(0.03inch~11.8inch)

Units:                           Metric/Imperial unit selectable

Sound Velocity Range: 1000m/s~9999m/s (0.039~0.394in/μs

Display resolution:       0.01mm or 0.1mm (lower than 100.0mm), 0.1mm (more than 99.99mm)

Accuracy:                      +/-(0.5%Thickness+0.04)mm, (depends on Materials and conditions)

Data Memory:              5 files(up to 100 values for each file)of stored values, 5 Sound Velocity of stored values

Power Source:               2pcs 1.5V AA size,batteries.250 hours typical operating time(LED backlight off)

Outline Dimensions:    150mm*74mm*32mm

Workpiece surface temperature:  - 10 ~ 60 ℃

The minimum thickness value capture capacity:   With a minimum thickness value capture capacity

Measurement cycle:    4 times/SEC, scanning of single point measurement model 20 times per second.

Weight:                        238 g

Power source:             Type AA alkaline battery 1.5 V (2)



Standard configuration:

ACCUR-1 Ultrasonic Thickness Gauge host, 5MHz 10mm probe, 4 mm steel calibration block,
Offline analysis software, RS232 Connect Cable
