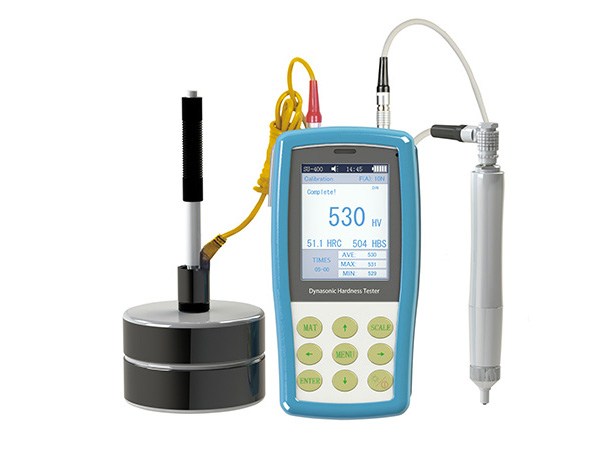

URNDT UCI-400 Portable Universal Dynasonic Hardness Tester

Product Details:

Place of Origin:China
Brand Name:URNDT
Model Number:UCI-400

Payment & Shipping Terms:

Minimum Order Quantity:1 set
Packaging Details:Carton
Delivery Time:3-7 days
Payment Terms:TT 100% in advanced
Detailed Product Description
Introduction:
- UCI-400 is a combined portable hardness tester which integrated the ultrasonic hardness testing method and dynamic Leeb hardness testing. It supports not only the UCI measurement of ultrasonic including manual probe 1kg, 2kg, 5kg, 10kg and motorized probe 0.3kg, 1kg but also the seven dynamic impact devices of Leeb measurement that is D, DC, DL, D+15, C, E, G to do rebound measurement.
- UCI-400 is an instrument with two applications. It can test thin, bright and clean specimen with the ultrasonic method and rough big specimens with Leeb rebound method. It solves the dilemma that Leeb method can not test electroplated coatings and hard coatings and ultrasonic method can not test coarse-grained materials.



Features:
- Perfect Accuracy: ±3% HV, ±1.5HR, ±3%HB
- One instrument two applications: Support ultrasonic probe and Leeb impact device.
- Metal shell: Metallic texture, shield electromagnetic interference effectively, improve instrument stability.
- Color screen display: Display the current measurement value, accumulative measurement value, Max, Min and Ave value.
- Bluetooth transferring: Support wireless Bluetooth print and data transferring.
- Mass storage: Save 1000 groups data.
- Calibration access: Save 20 groups calibration data without doing calibration for the same material over and over.

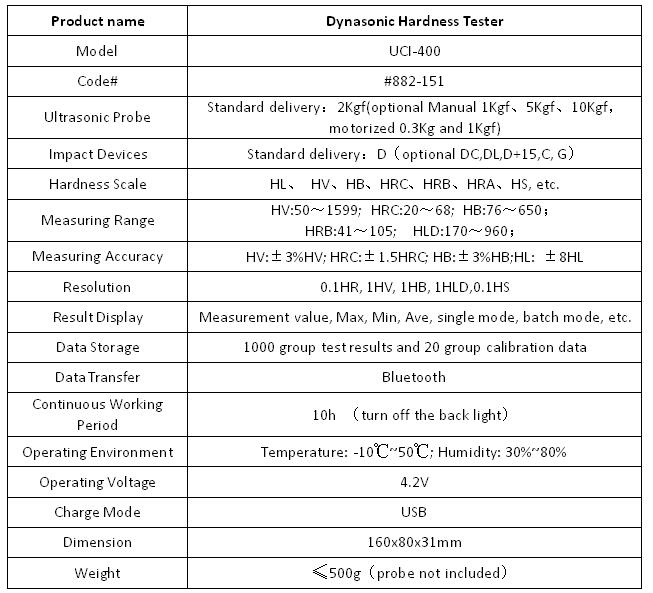

Technical specifications:

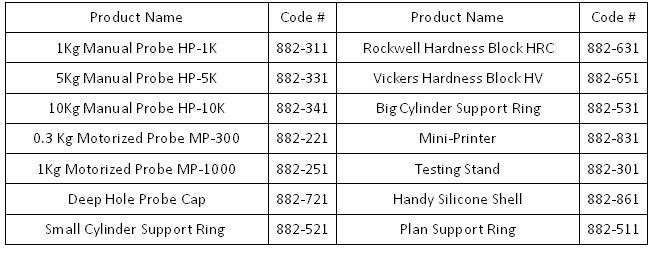

Standard Delivery:



Optional Accessories:
