Detailed Product Description
Introduction:

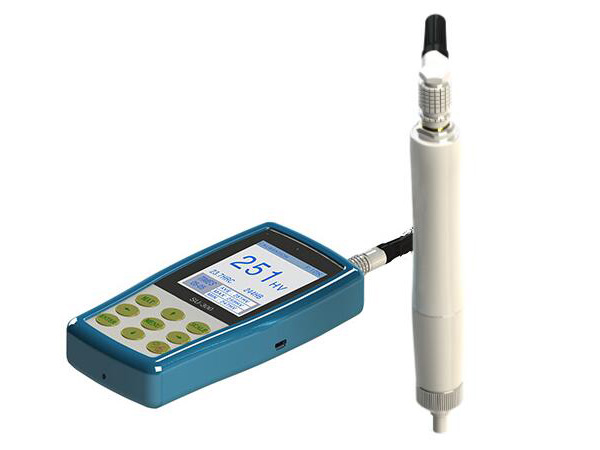

- UCI-300H manual ultrasonic hardness tester applies module design, which can work with manual probes HP-1K, HP-2K, HP-5K, HP-10K, can be used to test hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitrided stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.
- UCI-300H can test hardness of ferrous metal, non ferrous metal and alloys, it is an ideal instrument, can test hardness of HRA, HRB, HRC, HV, HBW, HS on site, assembly line and lab.
- UCI-300H can also be upgraded with motorized probes MP-300, MP-500, MP-800, MP-1000, then the function is same with UCI-300M.
Features:
- Perfect Accuracy: ±3% HV, ±1.5HR, ±3%HB
- Microscopic Indentation: Only high-power microscope can observe the indentation.
- Quick Measurement: Result in 2 seconds.
- Large LCD Display: Directly display measurement result, times count, maximum, minimal, average and deviation.
- Friendly Operation: Operate well after short training.
- Promised Warranty: 2-Year warranty for main unit (Excludes Probe).
- Mass Storage: Save 1000 groups measurement data.
- Simple Calibration: Save 20 groups calibration data for invoking, improve calibration efficiency.
Specifications:
Standard Delivery:
Manual Probe Specifications:
Block Specification:
Support Ring Specifications:
