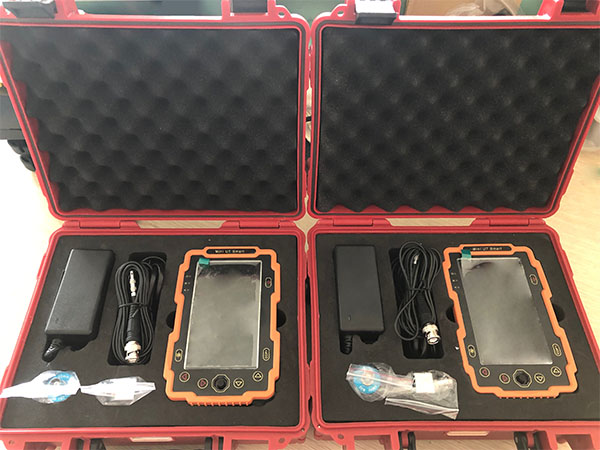

Mini UT-Smart DAC Digital Ultrasonic Flaw Detector

Product Details:

Place of Origin:China
Brand Name:URNDT
Model Number:Mini UT-Smart DAC

Payment & Shipping Terms:

Minimum Order Quantity:1 set
Packaging Details:Standard export carbon box
Delivery Time:3-7 days
Payment Terms:TT / Paypal / Western Union
Detailed Product Description
MAIN FEATURES
•Joystick control set and adjust all parameters
•Welding simulation map
•Large thickness reading display
•DAC curve with DAC alarm
•Positive, negative, and minimum depth alarms
•Filled waveform trace display
•Freeze and Peak memory mode
•Separately Gate A and Gate B setting with alarm
•Peak or Flank measurement
•Automatic calibration on two points
•Pulse repetition frequency control
•Displays sound path value, surface distance and depth to flaw in angle beam inspections
•Connects to PC via USB cable to download data and make certificates


TECHNICAL SPECIFICATIONS
1.Measuring range: 0-10000mm in steel
2.Sound velocity: 2 fixed values(3230m/s,5920m/s) and adjustable in the range 1000 to 9999m/s in steps of 1m/s
3.Probe delay: 0 to 365us
4.Gain: 100dB, adjustable in steps of 0.1/2/6/12/20 dB
5.Fine Gain: 0.1dB
6.Frequency range: 0.5-10MHz wide band
7.Pulse repetition rate: Automatic Setting
8.Test methods: Pulse echo mode and Thru mode
9.Pulse Voltage: 300 V negative spike
10.Damping: 120 ohm
11.Echo presentation: Full wave
12.Suppression: Linear, 0 to 90% screen height adjustable in steps of 1%, status indication on the display
13.DAC: Recording of up to 8 reference echoes, 40dB dynamic range, display of the DAC curve 3 or 4 DAC curve can be setting
14.Data storage: 1000 A-scan Trace Data sets in the FLASH memory, with additional alphanumeric identification and directory function
15.Units of measure: mm or inch
16.Interface: USB
17.Probe connector: Two LEMO 00 connectors
18.Power Supply: Removable 4x 18650 Li-ion Battery (Total 3.7V, 12.8 Ah) or mains supply via an 4.2V external mains power/charger unit JBD15-A2S
19.Operational period: Upto 12 hours with Battery ( select LCD high bright)
20.Operating temperature: -5° C +65° C
21.Storage temperature: -40° C +75° C (with batteries)
22.Display size: Monitor: 112mmx64mm (WxH)
23.Dimensions: 162mmx105mmx40mm (HxWxT)
