Detailed Product Description
|
Probe type
|
Designation
|
Angle
|
Transducer element size [mm]
|
Frequency [MHz]
|
|
angle probe
|
9x8-2M-35
|
35°
|
8x9
|
2 MHz
|
|
9x8-2M-45
|
45°
|
8x9
|
2 MHz
|
|
9x8-2M-60
|
60°
|
8x9
|
2 MHz
|
|
9x8-2M-70
|
70°
|
8x9
|
2 MHz
|
|
9x8-2M-80
|
80°
|
8x9
|
2 MHz
|
|
9x8-4M-35
|
35°
|
8x9
|
4 MHz
|
|
9x8-4M-45
|
45°
|
8x9
|
4 MHz
|
|
9x8-4M-60
|
60°
|
8x9
|
4 MHz
|
|
9x8-4M-70
|
70°
|
8x9
|
4 MHz
|
|
9x8-4M-80
|
80°
|
8x9
|
4 MHz
|
|
angle probe
|
22x20-2M-35
|
35°
|
20x22
|
2 MHz
|
|
22x20-2M-45
|
45°
|
20x22
|
2 MHz
|
|
22x20-2M-60
|
60°
|
20x22
|
2 MHz
|
|
22x20-2M-70
|
70°
|
20x22
|
2 MHz
|
|
22x20-2M-80
|
80°
|
20x22
|
2 MHz
|
|
22x20-4M-35
|
35°
|
20x22
|
4 MHz
|
|
22x20-4M-45
|
45°
|
20x22
|
4 MHz
|
|
22x20-4M-60
|
60°
|
20x22
|
4 MHz
|
|
22x20-4M-70
|
70°
|
20x22
|
4 MHz
|
|
22x20-4M-80
|
80°
|
20x22
|
4 MHz
|
|
Probe type
|
Designation
|
Transducer element* diameter[mm]
|
Frequency[MHz]
|
|

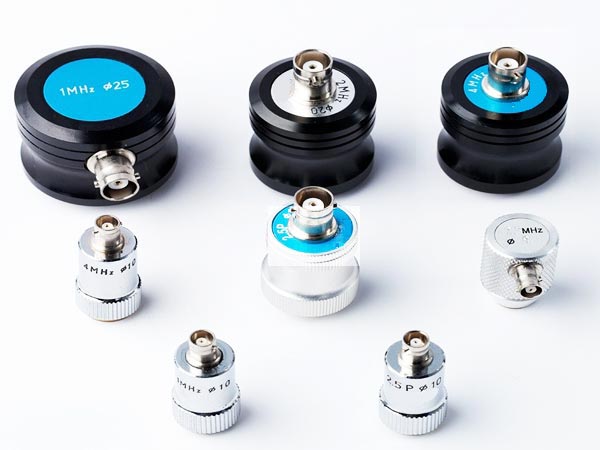

Standard straight probe
|
10-2M
|
Ø 10
|
2 MHz
|
|
10-4M
|
Ø 10
|
4 MHz
|
|
10-6M
|
Ø 10
|
6 MHz
|
|
20-2M
|
Ø 20
|
2 MHz
|
|
20-4M
|
Ø 20
|
4 MHz
|
|
20-6M
|
Ø 20
|
6 MHz
|
|
Probe type
|
Designation
|
Transducer element* diameter[mm]
|
Frequency[MHz]
|
|
Dual straight probe
|
2/10-2M
|
Ø 10
|
2 MHz
|
|
2/10-4M
|
Ø 10
|
4 MHz
|
|
2/10-6M
|
Ø 10
|
6 MHz
|
|
2/20-2M
|
Ø 20
|
2 MHz
|
|
2/20-4M
|
Ø 20
|
4 MHz
|
|
2/20-6M
|
Ø 20
|
6 MHz
|
|
Probe type
|
Designation
|
Angle
|
Transducer element* diameter[mm]
|
Frequency[MHz]
|
|
Dual angle probe
|
13x8-2M-60
|
60°
|
8x13
|
2 MHz
|
|
13x8-2M-70
|
70°
|
8x13
|
2 MHz
|
|
20x10-2M-60
|
60°
|
10x20
|
2 MHz
|
|
20x10-2M-70
|
70°
|
10x20
|
2 MHz
|
|
13x8-5M-60
|
60°
|
8x13
|
5 MHz
|
|
13x8-5M-70
|
70°
|
8x13
|
5 MHz
|
Note:
1.Other special probes are available such as Angle beam probe with pour water, probe for variable angle, probe for locomotive piston, beam TR probe with pour water, probe for railcar axle, probe for demarcate echo, cleanout machine tansducer etc.
2.We offer all kinds of probe with customer request.
