Detailed Product Description
Overview

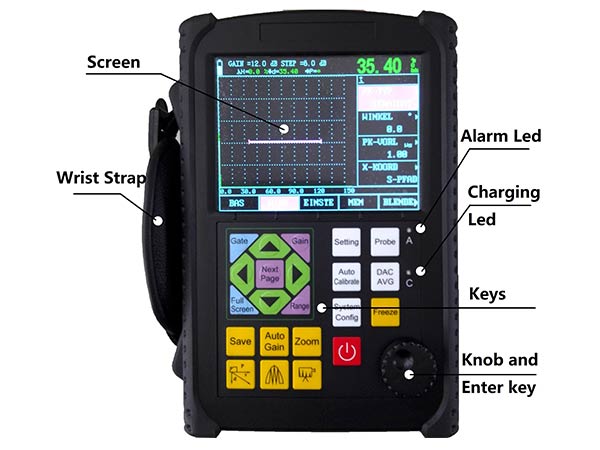

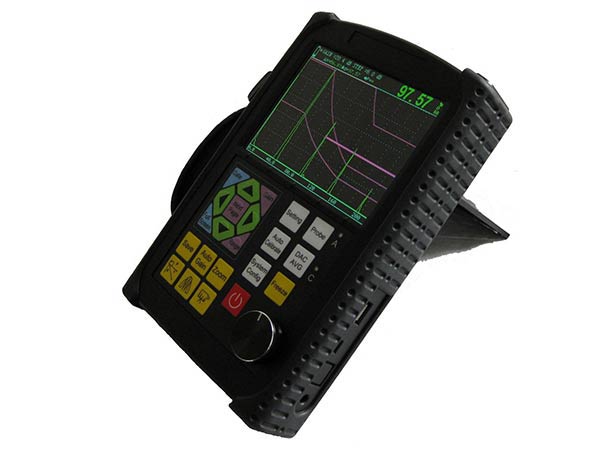

URNDT UTS-260 Ultrasonic Flaw Detector is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.

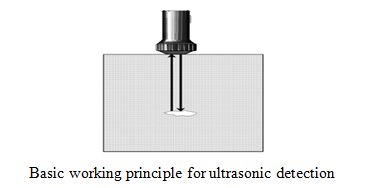

When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material. Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal, non metal and composite, etc.
Advantages:
★ Automated calibration (IIW), Automated gain
★ DAC, AVG, TCG, B scan, AWS, No Limited Video record,
★ High-speed capture and very low noise
★ high contrast viewing of the waveform from bright
★ Powerful pc software and reports can be export to excel
Performance Features
1. Automated calibration of transducer Zero Offset and/or Velocity
2. Automated gain, Peak Hold and Peak Memory
3. Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф)
4. Automated switch three staff gauge ((Depth d, level p, distance s)
5. 100 independence setup, any criterion can be input freely, we can work in the scene without test block
6. Big memory of 500 A graph
7. Gate and DAC alarm, Acoustic-Optical alarm
8. USB port, communication with pc is easy
9. The embed software can be online updated
10. Li battery, continue working time up to 10 hours
11. Display freeze
12. Automated echo degree
13. Angles and K-value
14. Lock and unlock function of system parameters
15. AWS D1.1
16. Dormancy and screen savers
17. Electronic clock calendar
18. There are 14 standards of DAC in UTS-260.
19. Automated make video of test process and play Connect the USB Disk, the length of video is unlimited
20. Two gates setting and alarm indication
21. High-speed capture and very low noise
22. DAC, AVG, TCG, B Scan, Solid plastic housing (IP65)
23. Automated calculate the size of the flaw with w ide bottom type in AVG function
24. 6dB DAC functions
25. Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles
26. Powerful pc software and reports can be export to excel

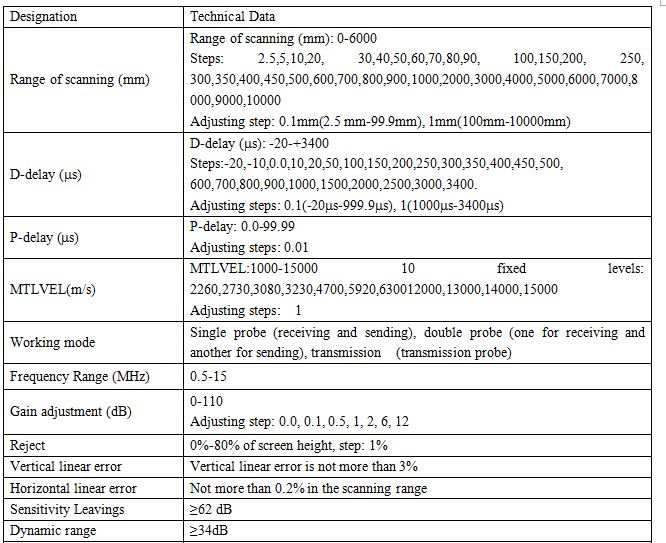

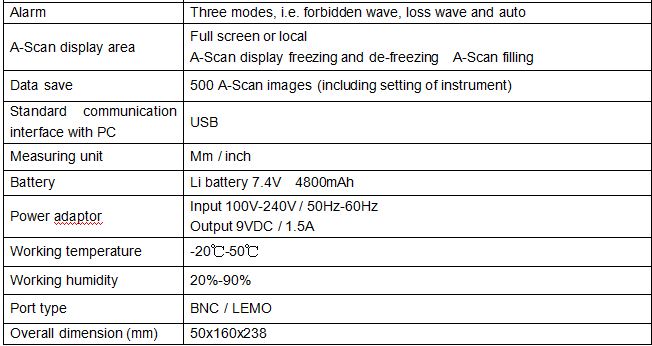

Technical Parameters

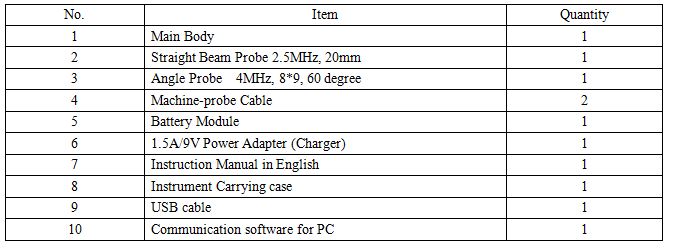

Standard Configuration
