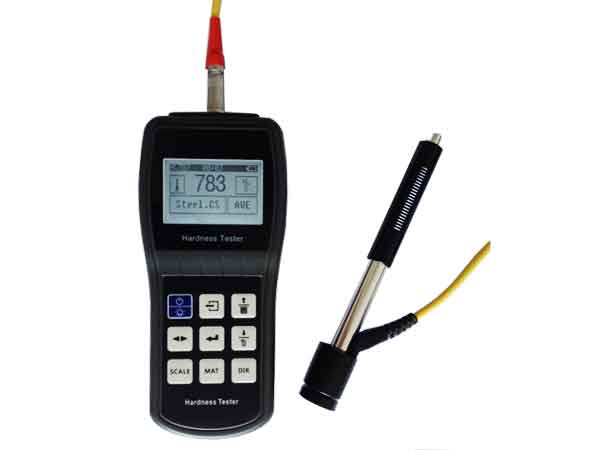

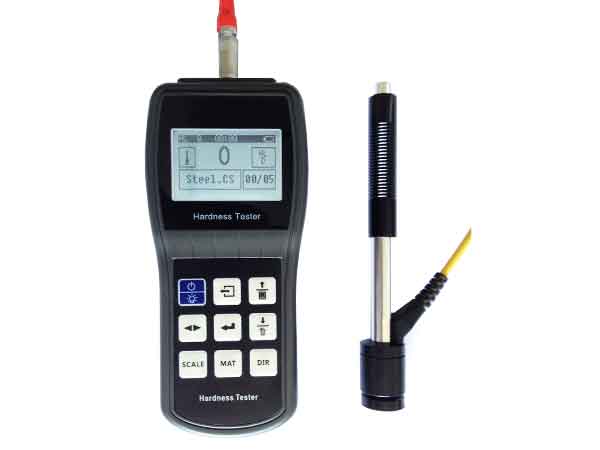

Detailed Product Description
Instrument features
1. Ultra-thin shell, more easily to hold
2. Suitable for multiple impact devices and 6 types of hardness scales are available for various applications
3. Large and clear digital display
Technical Specification
1. 1Hardness Scales:HL、 HRC、HRB、HV、HB、HS
2. Accuracy:+/- 0.5%
3. Repeatability Accuracy:HLD:±6 HRC:±1 HB:±4
4. Standard Impact Device:impact device of Type D
4. Upper / Lower Limits Setting:(170~960)HLD

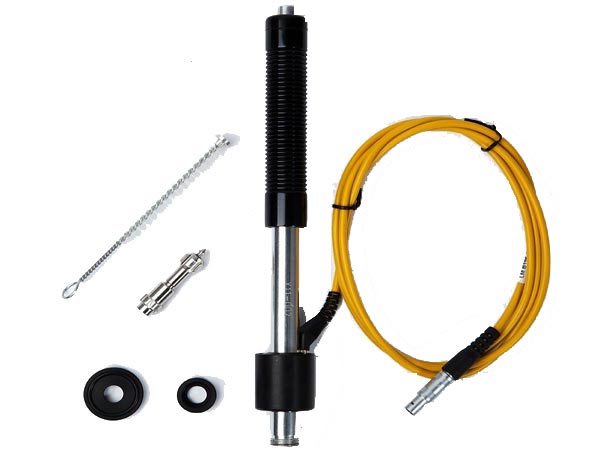

5. Optional Impact Device:D/ C /DC / D+15 / DL/ G
6. PC Interface:USB 2.0
7. Language:Chinese, English, Spanish
8. Screen Display:128X64 dot matrix LCD, backlight and adjustable contrast
9. Measuring Direction:360°(down, inclined down, level,inclined up and up)
10. Data Memory:100 group of readings
11. Max. Hardness of The Measured Work Piece:940HV(for D,DC,DL,D+15,C impact device)
12. Radius of Curvature of The Measured Work:Rmin=50mm(If using Alien supporting ring, Rmin=10mm)
13. Recognition Function:Recognize the type of the impact device by itself
14. Type of The Printer:Embedded thermal printers
15. Measurable Material:Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, aluminum casting alloy, copper zinc alloy(brass), copper tin alloy(bronze), fine copper

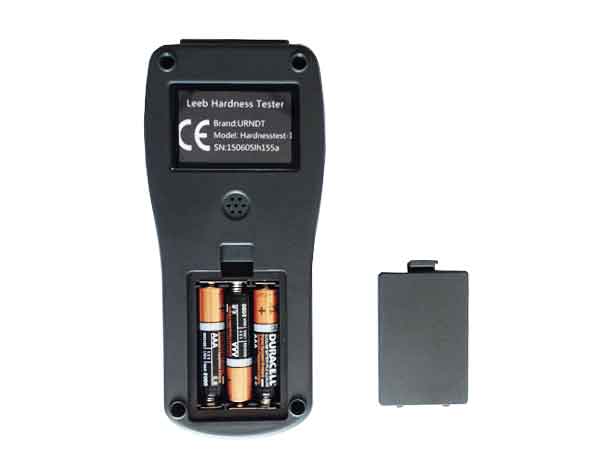

16. Power Supply:3x1.5V AAA
17. Dimensions:155mm x 68mm x 27 mm
18. Size:250g
Main functional parameters
1. Choose Testing Materials, Hardness Scales, Measuring Direction and times of Tests By Button;
2. Direct Display of Hardness Scales including HRB, HRC,HV, HB, HS, HL Show the Result of Each Test Repeatedly,Automatically or Manually Remove the Wrong Test Results;
3. Directly Output the Average Single Test Result or All the Results In One Time;
4. Automatic detection of the Battery Voltage,Low Voltage Warning for Battery protection,With Battery Indicating Icon in Test Status;
5. Plenty of Status Bar Display, Displaying Bluetooth, Buzzer, Error Information, Time, Battery Quantity and so on.
