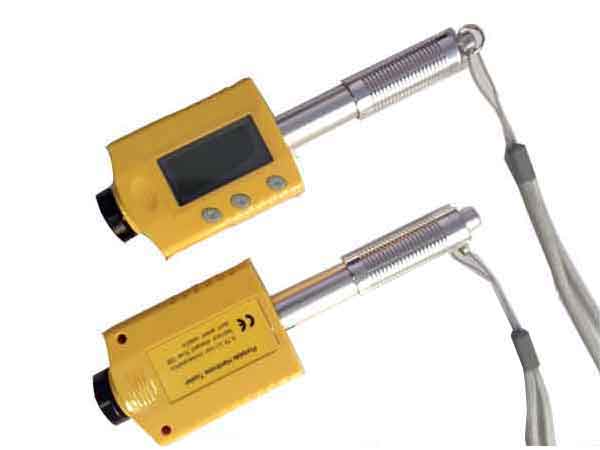

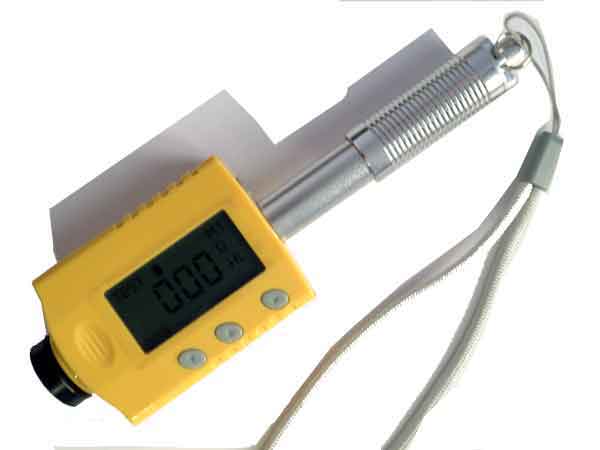

UHL1300 Pen-type Portable Hardness Tester

Product Details:

Place of Origin:China
Brand Name:URNDT
Model Number:UHL1300

Payment & Shipping Terms:

Minimum Order Quantity:1 set
Packaging Details:Standard export carton box
Delivery Time:Good in stock, could send out within three days
Payment Terms:100% TT, Paypal, Western Union
Detailed Product Description
UHL1300 is an advanced state-of-the-art integrated palm sized metal hardness tester which incorporate impact device and controller into one unit. Using our patent “two coils” technology, URNDT UHL1300 gives out extraordinary high accuracy up to +/-2 HL and universal angle. It is no need to set up impact direction when taking measurements by any angle.

UHL1300 will be used easily by menu operation even without operation manual. Its battery can be charged simply from USB port, also it has a customer re-calibration and statistics function.

Advantages
- Integrated design , easy operation
- Digital with high contrast LCD display
- High accuracy with patient technology: +/-2 HL (or 0.3% @HL800)
- Memories with 300 data, data can be recalled easily
- USB inter face, it can connect to computer
- Customer re- calibration allowed
- 3.7 V Li-ion rechargeable battery, it can be charged by USB or power source
- Statistics value can be calculated automatically
- With strength conversion value

Specifications

- Principle: Leeb hardness measurement
- Accuracy: +/-2HL  (or 0.3%@HL=800)
- Display: Digital with high contrast LED
- Hardness scale: HL / HRC / HRB / HB / HV / HS / HRA / σb
- Measuring range: HL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 /σb (rm) 255-2639N/mm2
- Impact device: D / DL (Optional)
- Materials: 10 common metal materials
- Memory: 300 data can be saved and re-readable
- Statistics: Average/Max/Min value can be calculated automatically
- Interface: USB for charging or connect to PC
- Recalibration: allowed by user
- Indicator: Low battery
- Power off: Manually / Auto
- Power supply: 3.7V Li-ion rechargeable battery
- Operating environment: -10⁰C ~+45⁰C
- Dimension (LxWxD): 148mm×44mm×22mm
- Net weight: 110g
- Standard: ASTM A956, DIN 50156, GB/T 17394-1998

Standard package

Seq Part Name                                             Qty
1 URNDT UHL1300 main unit                        1
2 Internal impact device D or DL                     1
3 Standard test block D with certificate            1
4 Cleaning brush (I)                                        1
5 3.7 V Li-ion rechargeable battery (internal)     1
6 USB Battery Charger                                    1
7 Communication cable                                   1
8 DataPro software                                         1
9 Operation manual                                        1
10 Product Certificate                                     1
11 Carrying case                                             1
