Application

This machine is according to the principles of safety, environmental protection and design and manufacture of a large vertical metallographic cutting machine，Suitable for cutting various metal and nonmetal material sample，In order to observe the material metallographic, lithofacies organization. The machine running stable, low noise, easy operation, use safety, is a solid material made laboratory sample one of the necessary equipment.





Structure

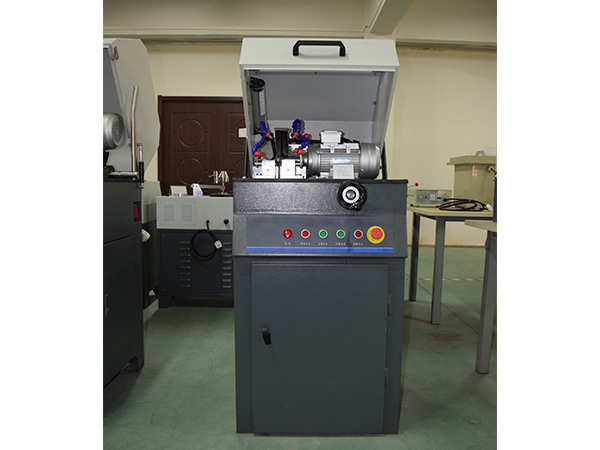

This machine is made by cutting system, cooling system, lighting system, cleaning system, etc. Equipment is completely covered by an open shield, In front of the shield is a large observation window, With high brightness illumination system makes the operator grasps the cutting process.

On the right side of design science manual cutting rod design makes cutting large work piece is very easy for you. Cast iron with groove workbench with vice can be competent for all kinds of special shape work piece cutting. Super cooling system parts will prevent burning when cutting，Water cooling tank placed inside equipment base, there is filter tank, and facilitate the collection of waste residue.

Gantry safety switch and riot shield to ensure the safety of the operator.



Main Technical Specifications

Power：380V , 4KW

Grinding wheel：350*2.5*32mm

Work table size：400*300mm

Max cutting section：Φ110mm

Water tank：80LCirculating cooling, magnetic filter

Overall Dimension：1060*1450*1650mm

Weight：450kg
