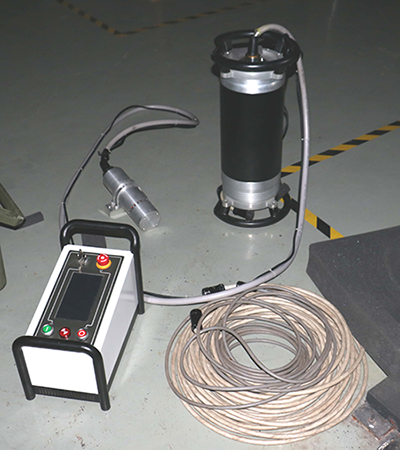

Detailed Product Description URNDT B160G X-ray High Frequency Flaw Detector



Advantage:

7 inch large LCD screen with Chinese and English menu display;
Small focus, clear imaging, and strong penetrating ability;
Suitable for various generators to meet the needs of field operations;
Suitable for small environments;

Main Specifications:

Working environment temperature: -20 ℃ ～ 50 ℃;
Use environment humidity: ≤85%;
Storage temperature: -25˚C ～ + 70˚C;
Input voltage range: AC190v ～ AC265v;
Input voltage frequency range: 40HZ ～ 60HZ;
kV value range, can be adjusted continuously: 50kv ～ 160kV (step 1 kV);
mA value range: 0.5 ～ 2.5mA (0.1 mA step)
Exposure time: 1 ~ 180S (accurate to 1S);
Maximum anode power: 480W;
Focus: 1.0mm;
X-ray tube size: φ85 × 265mm
Temporary load rate: 100% under 20 ℃ temperature environment;
Full load, 220V AC input current effective value: 5A;
Radiation angle: 40 ° × 40 °
High-voltage cable connector: R24
