Detailed Product Description
Products Description
GT380A video inspection system is an industrial video detection instrument with independent intellectual property rights, light collection, electromechanical and other high-tech. The detection instrument is controlled by intelligent rota-table, flipping, zooming, focusing lens, intelligent high-power long-term crawling control. It is composed of a special Kevlar cable retractable car. The specific technical advantages are as follows:
1. Wide detection range: It can be used for the detection of cracks, defects and breakage in long-distance space of 220-3000mm diameter. It is also suitable for video detection of pipelines with long distance and high corrosivity such as petroleum, chemical, nuclear power and fire protection.
2. Long detection distance: The detection line of the special cable for the crawler is 80 meters. The unique 360° rotation focusing lens is carried by the crawler, which can cover the detection range without dead angles, making the operator easy to complete the inspection task.
3. Detection image clarity is super high: This product has the international leading macro zoom lens technology, which enables the lens to achieve the best video effect through precise zoom adjustment under macro contact or infinity conditions. This feature is currently unique in the international arena.
4. Due to the distributed circular cold light source illumination scheme, the spot is large, the brightness is high, and the range is wide. It is the original photo of our company.
   Ming way.
5. GT380A series products all adopt unique technology with independent intellectual property rights, and the products are highly targeted and fully in compliance with testing.
   Working conditions.

Product Details




Technical Specifications

GT70R Lens introduction
Lens diameter (mm)	Φ70
Material	alloy steel
Lens length (mm)	120
Adapt to pipe diameter (mm)	220-3000
Maximum power	10W
Lens pixel	3.2 million pixels
Lens depth of field	2mm--∞
Lens focal length	Motorized zoom technology
Variable distance	CCD optical 10 zoom, electronic 10 zoom
Lens flip angle	360° uniform speed infinite rotation
Lens rotation angle	220° uniform speed flip
Lens rotation control	7 rev / min
light source	Unique distributed circular cold lighting technology
Ambient light	Strongest 40000Lux
Front light	6 high-brightness lighting sources
Ambient light intensity	Dual light source brightness is adjustable in 6 steps
GT380A Controller introduction
monitor	10.1 inch color bright LCD display
Display brightness	500 lumens
Display resolution	1280*800
Lens direction control	Button, microcomputer electric control
Crawler control	Manual electric joystick
Brightness control	Dark-light 6 adjustable, button control
Device function	Video camera control
power supply	AC 220v ± 10%
Image storage	8-32G memory card
Ambient temperature	-20o- 60 oC
Detection length (m)	100
Crawler Introduction
speed	2-25 m / min 2 level speed
Movement mode	Wheeled crawl
Drive mode	four-wheel drive
Chassis height	45MM and 75MM
Material	High strength alloy material
Running distance (m)	0-80m
Adapt to the environment (mm)	240mm or more
power	200W
Ambient temperature	-20°-60°
environment humidity	Up to 90% RH

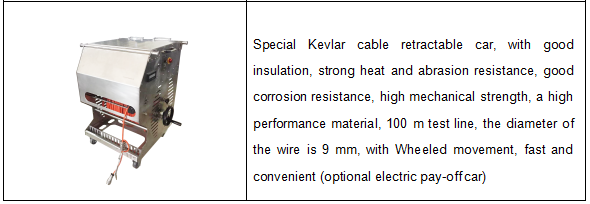

Wire reel introduction (optional automatic line car)
Detection length (m)	0-100m
Retract mode	Manual retraction (convenient and easy to move)
Material	High temperature and wear resistance

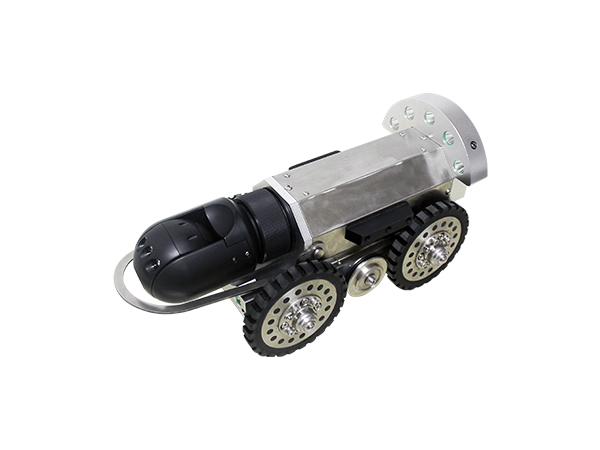

Crawler Picture
