Detailed Product Description Products Description

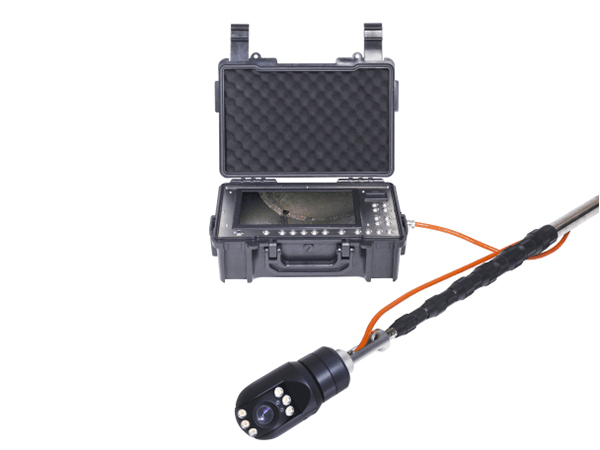

GT75BXA industrial container endoscope is an industrial video detection instrument with independent intellectual property rights, integrating light, machine and electricity. The test instrument consists of intelligent rotating lens, intelligent controller, elastic GFRP retractable reel, etc. composition. The specific technical advantages are as follows:
1. Wide detection range: It is suitable for project inspection of pipelines and containers of 75-10000mm. It is easy to use the lens with different diameter and function, and it is especially suitable for reactor, storage tank, gas tight pipeline, chemical pipeline, boiler header, water cooling. Video detection of wall, air separation pipe, and generator shaft center hole.
2. Long detection distance: The detection line of 50 meters is equipped. When only one hand hole is opened, the detection range can be completely covered, so that the operator does not need to perform a large number of pipe welding and recovery after the detection.
3. Detection image clarity is super high: This product has the international leading macro zoom technology, which enables the lens to achieve the best video effect through precise focusing under macro contact or infinity conditions.
4. Due to the LED cold light source lighting scheme, the maintenance cost is extremely low, and the life of the light source is up to 10,000 hours.
5. All adopt electronic technology, the test line is durable and has few failure points.
6. If the equipment fails, the supplier can provide the backup machine in time, so as not to affect the normal construction period.

Product Feature
1. The lens's optical zoom and zoom technology make the inspection more detailed and precise (patent)
2. The lens has an infinite rotation of 360° in the axial direction and a 220° inversion in the radial direction, so that the detection has no dead angle.
3. Built-in LED light source design with adjustable brightness to make the detection image clearer (patent)
4. With power supply, no need to use AC power on site, can be detected at any time
5. Video and photo can be set arbitrarily, easy to use
6. Waterproof design, IP68 waterproof grade, 10m waterproof
7. Lightweight, easy to use and easy to carry
Product Details

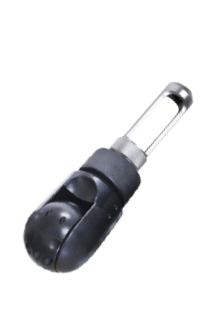

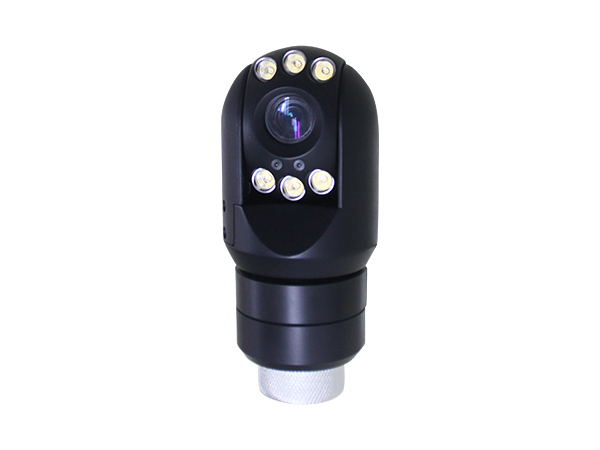

GT70R miniature pan-tilt color camera lens (patented product), rotating lens diameter 70mm, lens length 160mm, radial 220° flip, axial 360° infinite rotation, 10 times electronic magnification, magnification 100, auto focus (exclusive function) The glare design illumination reaches 100,000 Lux. Adopt 1/3cmos sensor chip, 700TV line (pixel is higher than other similar products), IP67 waterproof standard, can prevent 10m water depth; suitable for reaction kettle, tank container, gas pipeline, chemical pipeline, petrochemical pipeline, power station boiler Video detection of box, steam turbine main shaft center hole, air separation pipe, main steam pipe.

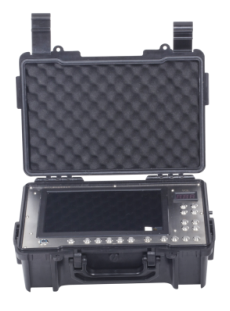

B type 10.1-inch color liquid crystal display. Dust control panel, light touch button for dimming, focusing, rotation and flip control. AC and DC power supply, with high-performance lithium battery, can work continuously for more than 5 hours at full power, no external power supply. The host can perform an integrated photographing and recording function to provide timely and detailed picture evidence for judgment.

MPEG4 image compression method
Resolution: 1240*960(V)
Can shoot, record
Recording speed: up to 30 images per second
Memory card - support 8G SD card (2.0 standard SD card)
Can display recording time and date Support local replay function

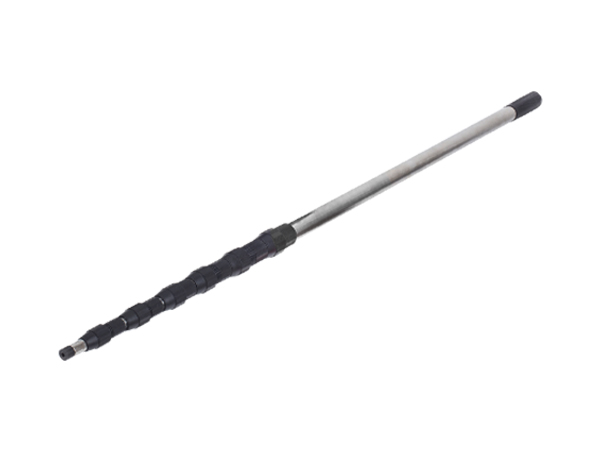

3 meter hand-held telescopic rod, the auxiliary lens enters the detection space.

Removable reel with cable length of 20 meters (optional).

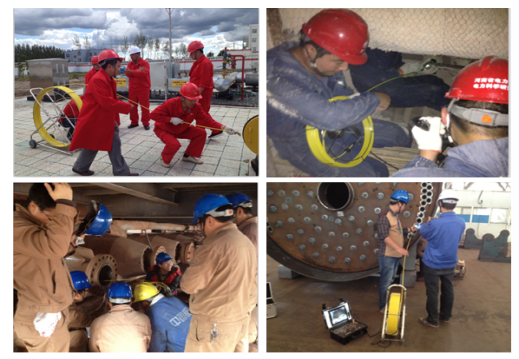

On-site Inspection

Technical Specifications

GT70R Lens introduction
Lens diameter (mm)	Φ70
Material	Alloy steel
Lens length (mm)	160
Adapt to pipe diameter (mm)	75-∞
Maximum power	30W
Lens pixel	3200,000
Lens depth of field	5mm--∞
Lens flip angle	360° Unsteady rotation at a constant speed
Lens rotation angle	220° Uniform flip
Lens line of sight	10 times electronic magnification, magnification is 100
Lens rotation control	7 rev / min
light source	Front light source
Ambient light	100000Lux
Front light	2 high-brightness LED
Light source strength	3-level adjustment light source

Product Configuration

GT70R Lens, 360° rotation, Radial 220° autofocus, zoom	1
10.1 inch portable controller	1
20 meter flexible test line	1
3 m telescopic rod	1
Power charger	1
Instrument box	1
8G SD card	1
Operation Manual	1
Certificate	1
