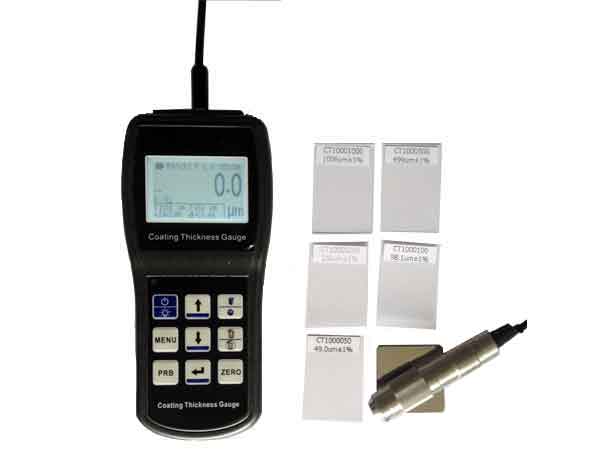

UCT6500 Coating Thickness Gauge 0-1500um

Product Details:

Place of Origin:China
Brand Name:URNDT
Model Number:UCT6500

Payment & Shipping Terms:

Minimum Order Quantity:1 set
Packaging Details:Standard export carton box
Delivery Time:Goods in stock,could send out within one week
Payment Terms:100% T/T,paypal or wester Union
Detailed Product Description

Unique temperature compensation algorithm
Supporting multiple calibration mode
Voice broadcast of results
Wireless printing available


Technical Specification
Range:                                                             0-1500 μm
Error:                                                               3%H+1μm(H is the measuring range)

Min.curvature Radius of the measured work :1.5mm(F Type)、3mm(F Type)
Critical thickness of the base:                          0.5mm(F type)、0.3mm(N type)
Min.diameter of the base:                                7mm(F type)、5mm(N type)

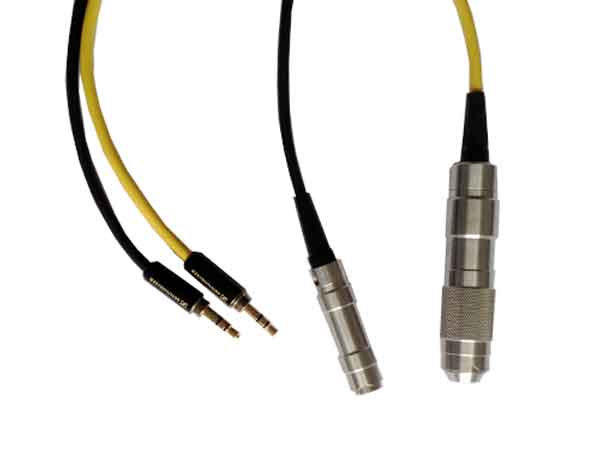

Probe Type:                                                     Ferrous type、Non-ferrous type
Alarm:Configurable Alarm limit
Working Voltage:                                              3*1.5 V AAA
Dimensions:                                                     155mm*68mm*27 mm
Size:                                                                  230g

Main functional parameters
Two patterns of working: pattern of direct and pattern of group.
Five statistical data: Mean Value, Maximum Value, Minimum Value, Measurement Times
and Standard Deviation.
Two optional methods available to calibrate the gauge, and you can calibrate system error
of the probe using basic calibration method.
Saving function: capable of 500 sets of measurement value.
Deleting function: You can delete one of the doubtful data and you can also delete all of data
 in the memory to prepare for new measurement.
Limit settings: alarm if one of the measurement data is beyond of the limits.
Show battery information in real time
The buzzer will give prompt when making measurement and you can also turn off the buzzer.
Variable standby time, and it will turn off if the time is up.
Adjustable contrast of the LCD screen
Error message function: Error message will show on the LCD screen or the buzzer gives error message.
Two methods of power off: Manual & Automatically
